LAUNCH X431 PRO STAR Diagnostic Scanner Full System OBD2 Scan Tool, 37+ Services Functions, CANFD DOIP, ECU Coding, FCA AutoAuth



Launch X-431 PRO STAR is an 8-inch smart car diagnostic device with diagnostic cable inherits the functions and advantages of the X-431V/ X-431 PRO Elite/ X-431 PROS Elite product, which can cover more than 99% of the cars on the market. Based on Android 10.0 system, it adopts 2.0Ghz 4-core high-efficiency processor, 4GB RAM+64GB ROM large storage, and is equipped with a high-endurance battery 6000mAh, which runs faster, more stably and lasts longer.



LAUNCH X431 PRO STAR Features:



LAUNCH X431 PRO STAR Extensions (Sold Separately):

• X431 Printer (Print out diagnostic data/ reports.)
• LAUNCH X431 O2-2 Oscilloscope Scopebox.
• LAUNCH X431 Sensorbox S2-2.
• VSP600 Video Scope: Give you a direct image of the engine, gears, compressors, headers and valves, and body components.
• BST360 Battery Tester: For Battery Cranking system Test, Battery Charging system Test, Battery Health Test.
• X431 TSGUN or Launch X431 i-TPMS (TPMS Tool).
• X-PROG3 Programmer.
• LAUNCH CRT5011E.



---

Functions:

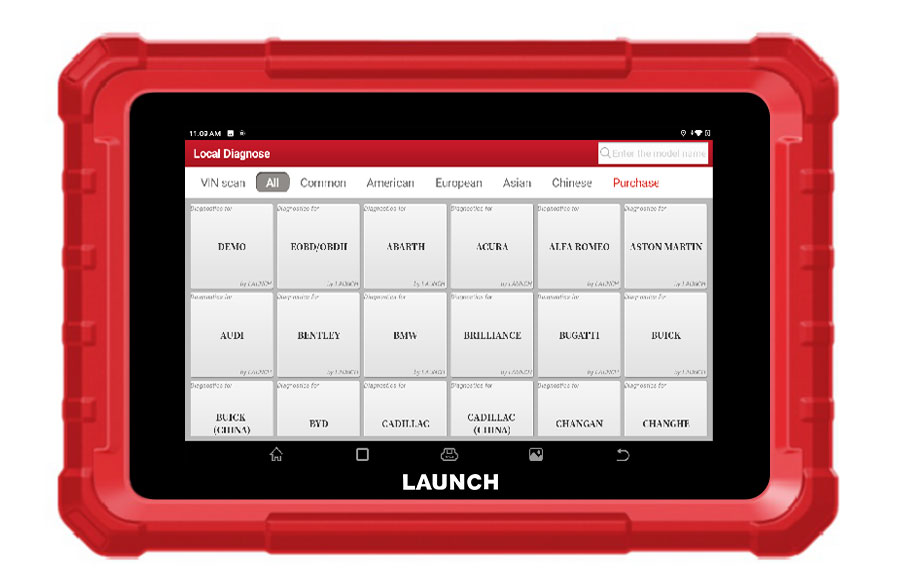

Launch has accumulated more than 20 years of automotive diagnostic technology and pioneered the technology of intelligent diagnosis. Through "intelligent diagnosis", it can quickly read the vehicle VIN code, quickly enter the diagnosis, and check the historical diagnosis record.

Supports full system diagnosis of 90+ brands of vehicles worldwide. It supports basic function diagnosis, version information reading, code reading, code clearing, data stream reading, action testing, coding, matching, etc. It can read and record data streams, etc., to help quickly locate faults.

Advanced ECU Coding & Offline/ Online Coding
X431 PRO STAR supports advanced ECU coding for a wider range of car models, including both old and new models without additional cost.


37+ Special Functions

You can easily get the VIN information of the car, and do a full scan for your car & get a diagnostic health report.It provides full system diagnostics for a wide range of vehicle systems, including ECM, TCM, ABS, SRS, BCM, and more. This capability allows it to perform tasks such as reading and erasing codes, viewing live data, and retrieving ECU information across multiple systems. Full range car models and full car system diagnose make it a professional automotive diagnostic tool.
Launch X431 PRO STAR supports 31 special functions commonly used in most car models:
1.ABS Bleeding
* This function must be executed to remove air from the ABS system, restoring brake sensitivity.
2.TPMS Reset
* Essential for resetting the tire pressure monitoring system after changes such as tire replacement, sensor damage, or low tire pressure.
3.Oil Lamp Reset
* Resets the engine oil life system after an oil change, ensuring accurate tracking of oil lifespan.
4.Electronic Throttle Sensor Reset
* Initializes the throttle actuator to reset the ECU learning value back to its default state.
5.Injector Coding
* Ensures that each cylinder can correctly identify its injector, necessary after replacing the ECU or injectors.
6.SAS Reset
* Clears faulty steering angle sensor memories and recalibrates the steering angle sensor.
7.Brake-pad Reset
* Activates and deactivates brake control systems, assists with brake fluid control, and sets brakes post replacement of discs or pads.
8.Gear Learning
* Required after replacing the engine ECU, crankshaft position sensor, or crankshaft flywheel to ensure proper functioning.
9.IMMO Service
* Matches keys to the car's immobilizer system to prevent unauthorized vehicle use, crucial after replacing or reprogramming keys.
10.Battery Matching
* Resets the battery monitoring unit to clear fault information after replacing or charging the battery.
11.DPF Regeneration
* Clears particulate matter from the diesel particulate filter, maintaining its efficiency.
12.EGR Adaption
* Relearns the EGR valve settings after cleaning or replacement.
13.Suspension Matching
* Adjusts and calibrates the body height sensor in the air suspension system following sensor or control module replacements.
14.NOx Sensor Reset
* Resets the learned values of the NOx catalytic converter stored in the engine ECU after replacing the converter.
15.Tire Reset
* Configures the vehicle for new or modified tires by setting the size parameters.
16.Windows Calibration
* Matches door windows to restore initial ECU memory settings.
17.Stop-start Reset
* Adjusts the automatic Start/Stop feature settings via the ECU, provided the vehicle supports this function.
18.AC Initialization
* Reinitializes the AC system following ECU or actuator replacements or memory loss.
19.AdBlue Reset
* Necessary after refilling or replacing diesel exhaust fluid (urea).
20.AFS Headlamp Reset
* Initializes adaptive front lighting systems to ensure proper operation.
21.A/F Reset
* Sets or relearns air/fuel ratio parameters for optimized engine performance.
22.Gearbox Reset
* Completes gearbox self-learning to improve gear-shifting quality and performance.
23.Coolant Bleeding
* Activates the electronic water pump for efficient bleeding of the cooling system.
24.Transport Reset
* Deactivates transport mode to restore normal vehicle operations, reducing power consumption during transit.
25.Seat Calibration
* Matches replaced or repaired seats with memory functions for optimal positioning.
26.High Voltage Battery Detection
* Diagnoses and detects the status of high-voltage batteries.
27.Sunroof Initialization
* Adjusts sunroof settings for proper operation, including locking, closing during rain, and memory functions.
28.Engine Power Balance Monitoring
* Monitors crankshaft acceleration in each cylinder's power stroke to evaluate relative power contributions.
29.Language Change
* Alters the system language of the vehicle’s center console, requiring a specific language pack.
31.Gas Particulate Filter (GPF) Regeneration
* Regenerates or replaces the GPF to maintain engine performance and reduce fuel consumption.
31.Intelligent Cruise Control System Reset
* Matches the intelligent cruise control module following replacement or repair.

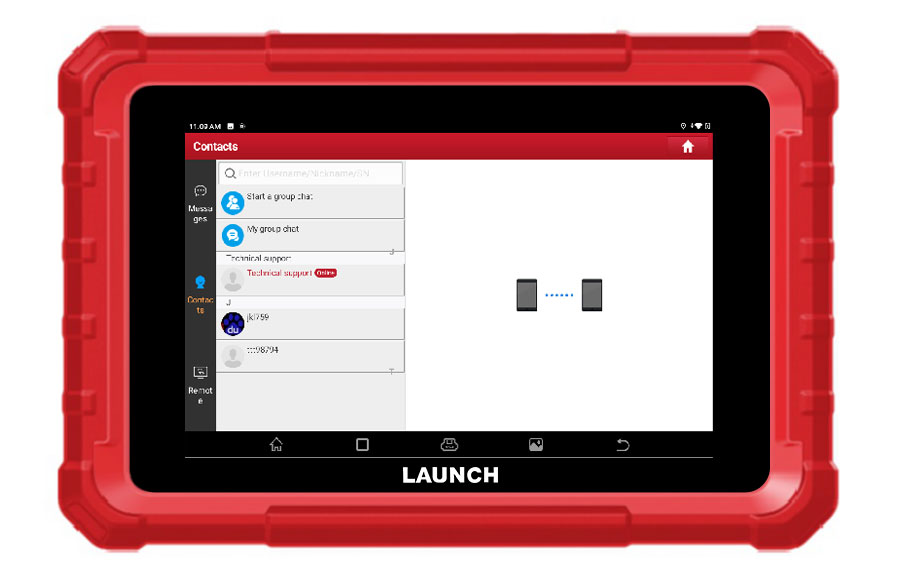

Remote diagnosis can realize real-time communication between devices or between devices and computers, complete vehicle remote diagnosis, and make it possible for repair technicians to diagnose vehicles thousands of miles away.



Supports tire pressure activation, programming, learning, detection and other functions with a tire pressure gun (optional).



Supports one-click upgrade of client software, vehicle model software, and connector firmware. A new smart upgrade function is added, which can automatically filter out commonly used software according to the user's software usage for users to quickly upgrade.

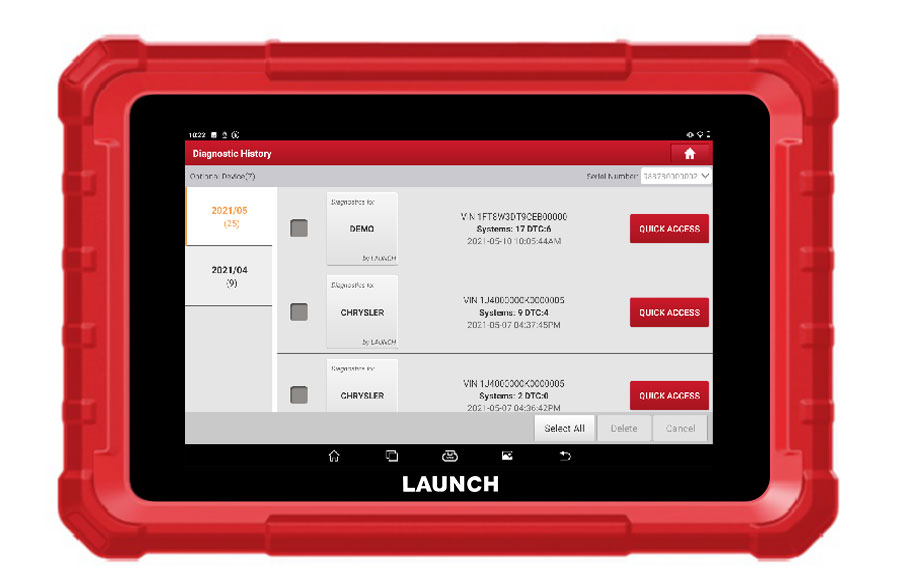

Each time a diagnosis is performed, a vehicle diagnostic record is automatically generated for easy viewing and comparison at any time to help locate the fault.

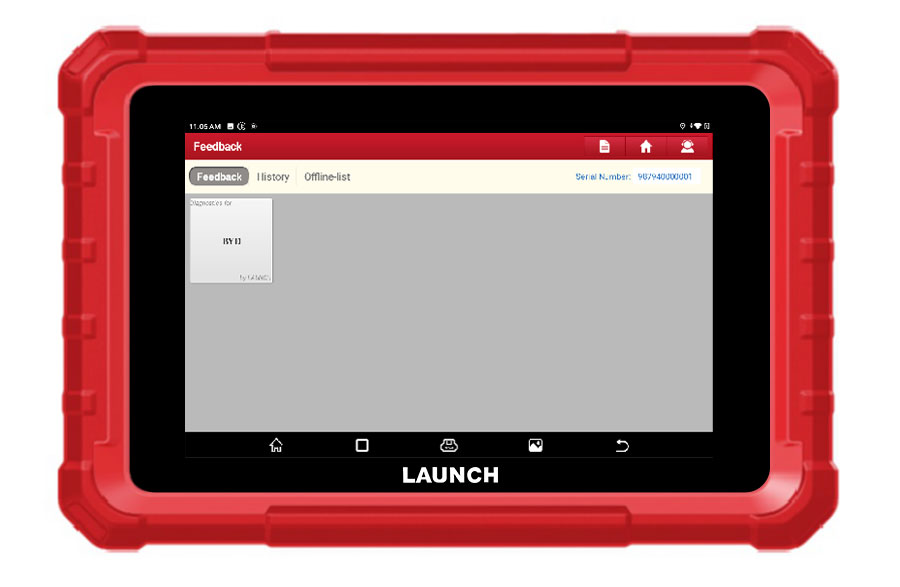

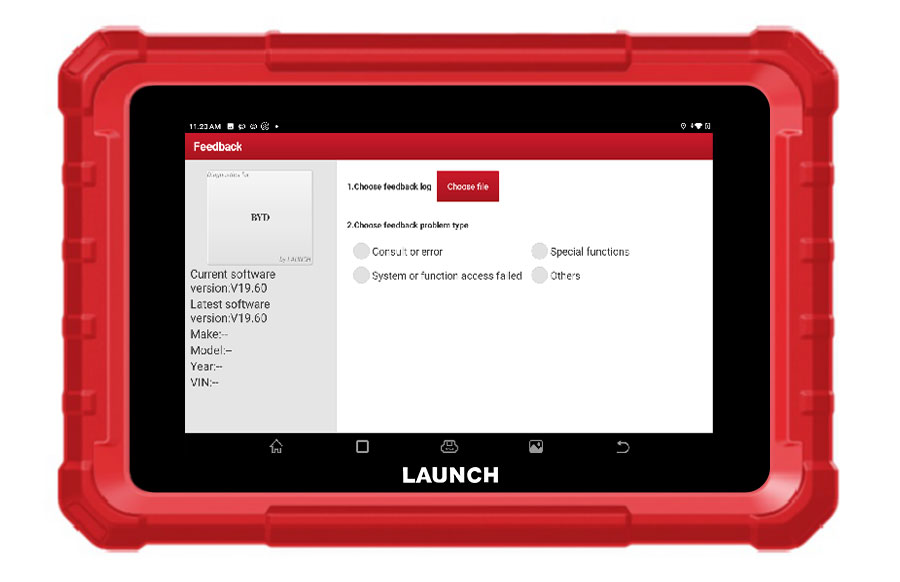

When users encounter special vehicle model or functional abnormalities during use, they can provide their opinions to Launch Company through "feedback", and dedicated technical personnel will track and handle the problems in a timely manner.

It supports ADAS calibration function with ADAS PRO or ADAS MOBILE (both are optional), which can realize the calibration of ADAS systems such as LDW, ACC, RCW, AVM, BSD, and NVS.

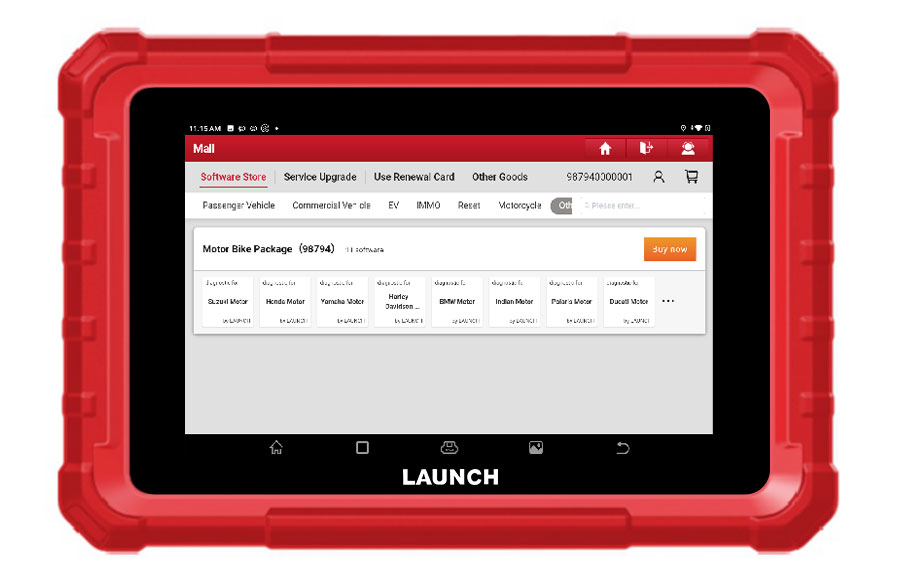

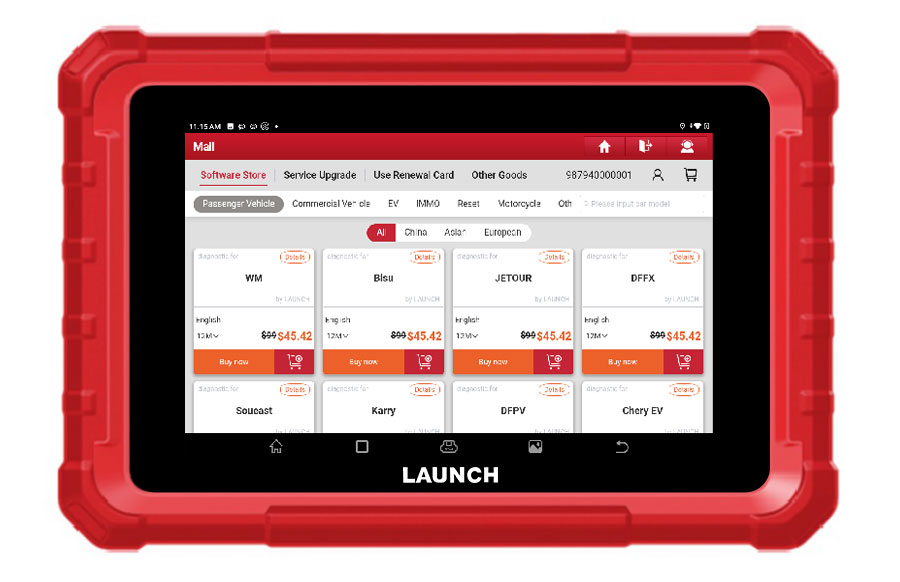

Supports online purchase of software, functions and some hardware outside the configuration, software renewal, etc. More functions are coming online.

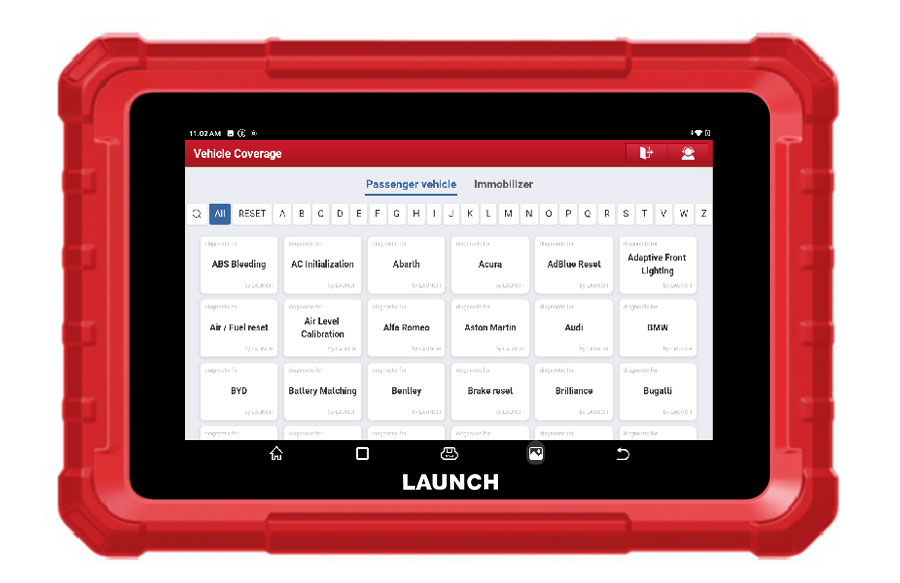

You can check the supported brands, models, systems and functions online at any time.
American cars:
BUICK,  CADILLAC, CHEVROLET,  CHRYSLER,  DODGE,  FIAT(BRAZIL),  FORD,  FORD(AUSTRALIA) ,  GM. JEEP,  LINCOLI,  GM(BRAZIL)

European car:
ABARTH, ALFA ROMEO, AUDI,  BENTLEY, BMW, BUGATTI, CITROEN,  DACIA, EUROFORD,  FERRARI,  FIAT,  GAZ,
OPEL(SOUTHAFRICA), IVECO.JAGUAR, LAMBORGHINI, LANCIA, LANDROVE, MASERATI, MAYBACH, , MERCEDES, MINI, OPEL, PEUGEOT, PORSCHE, RENAULT, ROLLSROYCE, ROVER, SAAB, SEAT, SKODA, SMART, SPRINTER,  , VAUXHALL, VAZ, VOLVO, VW , ASTONMARTIN, UAZ

Asian cars：
ACURA, DAEWOO, DAIHATSU, HOLDEN(AUSTRALIA), HONDA, HYUNDAI, INFINITI, ISUZU, KIA, LEXUS, LUXGEN, MAHINDRA, MAHINDRA(INDIAN), MARUTI, MARUTI(INDIAN), MAZDA, MITSUBISHI, NISSAN, GTR(NISSAN), PERODUA, PERODUA(MALAYSIA, PROTON, PROTON(MALAYSIA, SAMSUNG, SAIPA, SSANGYONG, SUBARU, SUZUKI, TATA, TATA(INDIAN),  TOYOTA , UNITED
PAKISTAN

Chinese car：
BRILLIANCE, BYD, CHANGAN, CHANGHE, CHBUICK, CHERY, CHANGHE, SUZUKI, DFCIROEN, ECUAID, FAW(TIANJIN FOTON, GONOW, GWM, HAFEI, HAIMA, JAC, JAC, REFINE, JMC, JOYLONG, LIFAN, MG(SAIC, QOROS, MAXUS, SGM, SGMW, XINKAI, POLARSUN, ZX, AUTO, ZOTYE, SENOUA(BAIC)
(Due to regional and system updates, car models may differ, please contact customer service for confirmation!)

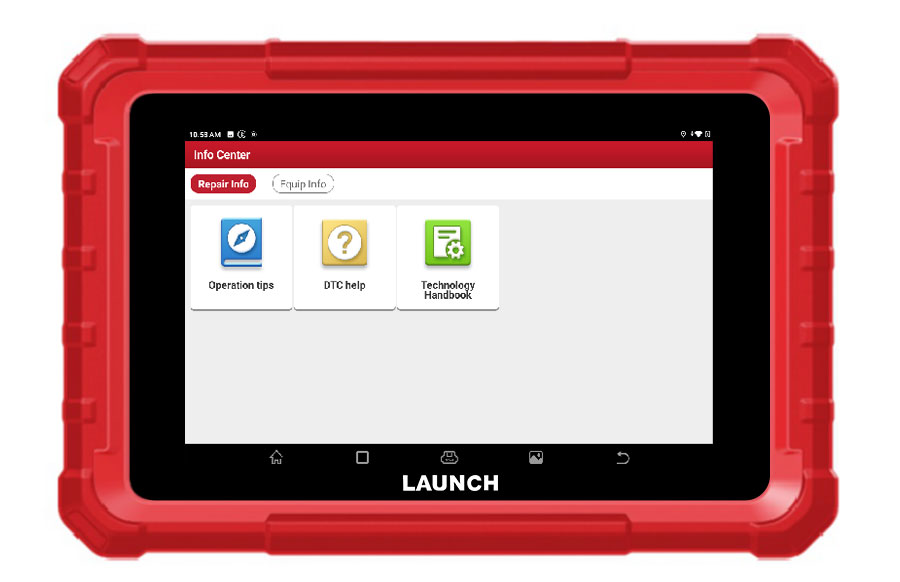

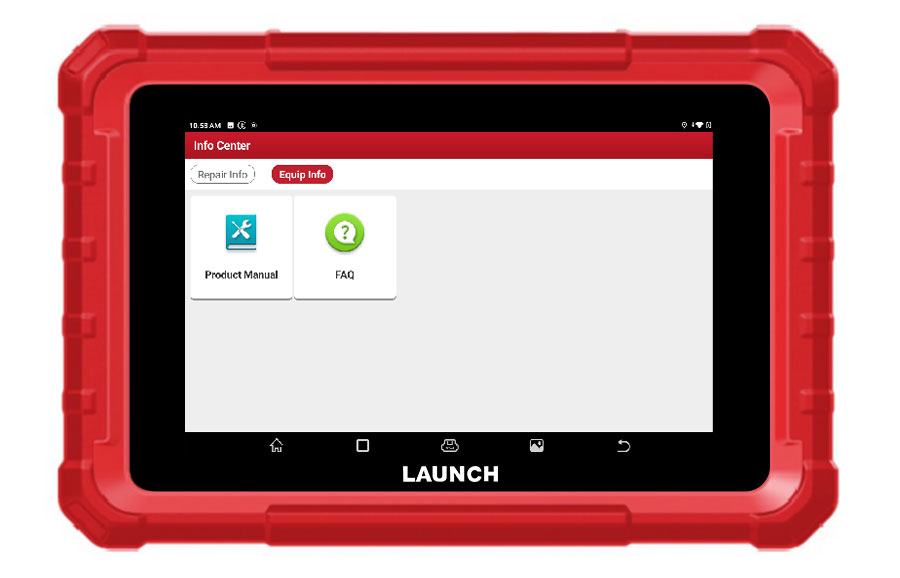

The Info Center module provides rich database inquiries such as operation tips, DTC help, product manuals, FAQ, etc.

The User Info includes My Reports, VCI, Activate VCI, Firmware Fix, etc.

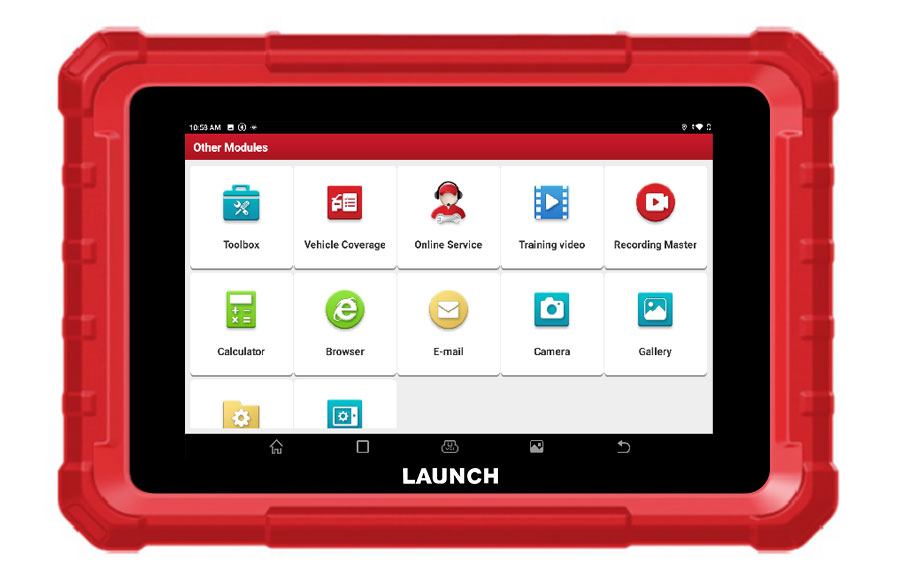

Other modules include vehicle coverage, manual, setting, online service, file management, etc.

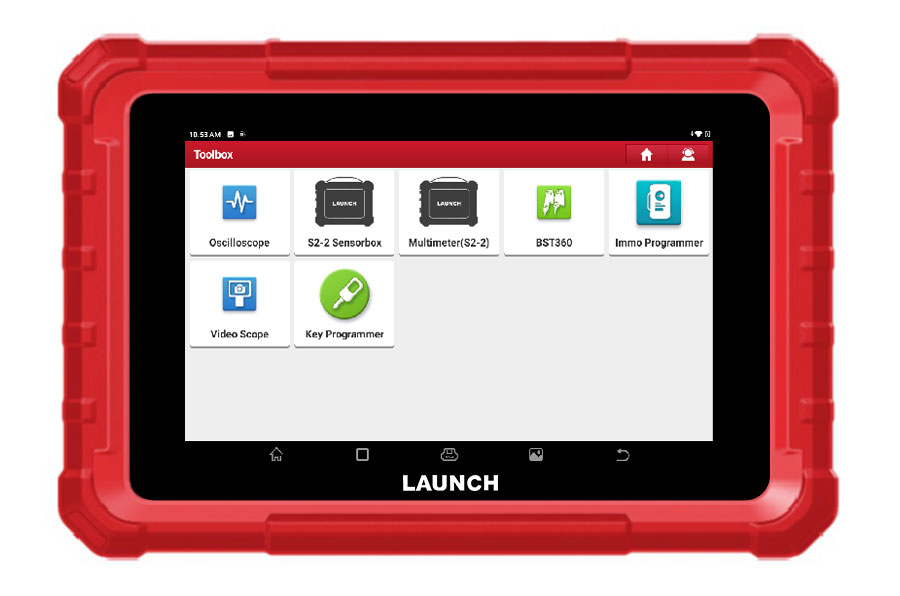

It supports the use with expansion modules such as endoscope, battery test, oscilloscope, sensor, IMMO programmer, etc., to make the diagnostic function more powerful.

---

Product Specifications:



Operating system: Android 10.0

Processor: 2.0GHz, quad-core

Memory: 4GB

Storage: 64GB

Display: 8-inch, LCD screen

Resolution: 1280*800

Camera: rear 8 megapixels

Wi-Fi: 5G/2.4GHz

Battery: 6000mAh

Operating temperature: 0℃～50℃

Storage temperature: -20°C to 70°C

Dimensions: 256*171*40.5 (mm)

Net weight: 1000g

---
