Product Description

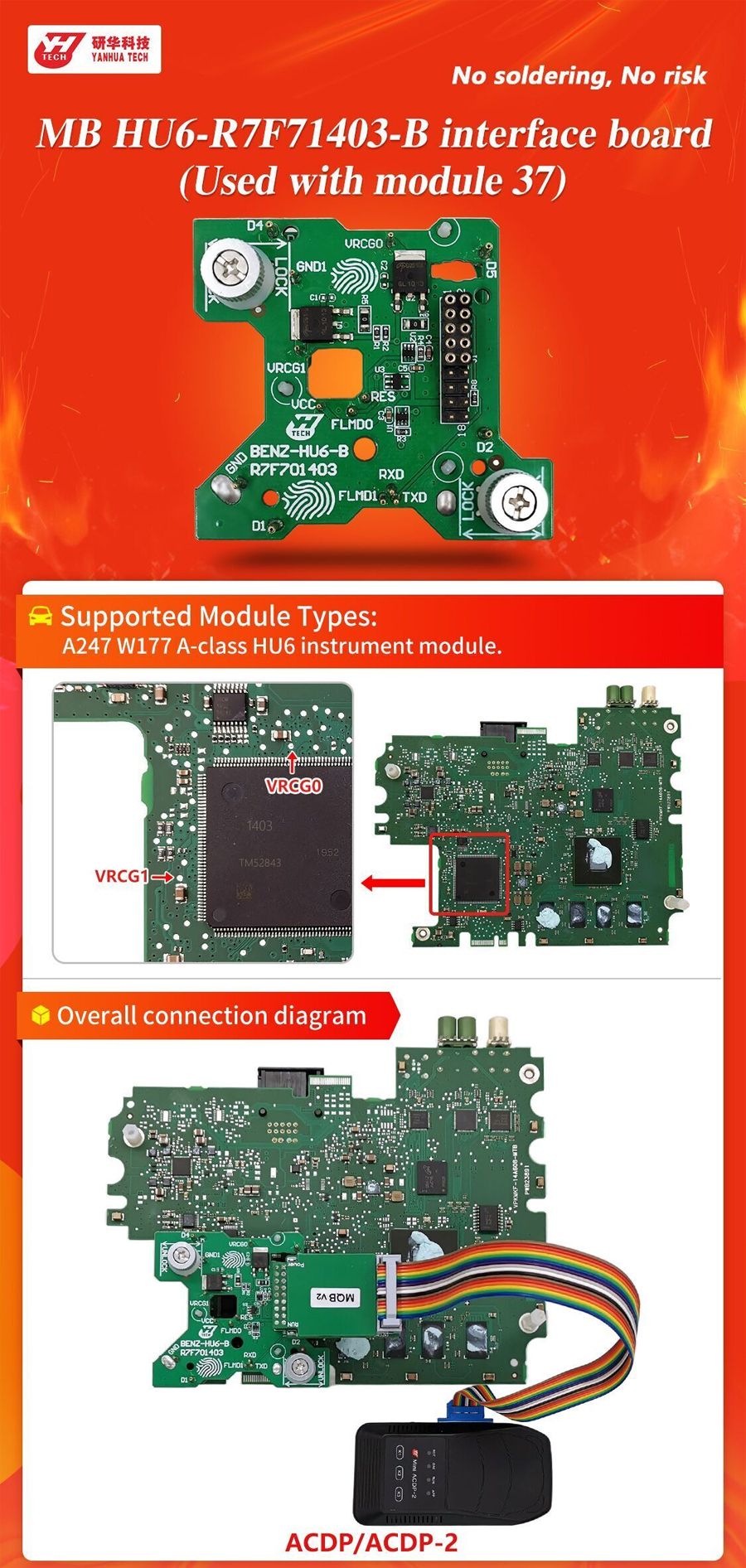

Yanhua MB HU6 R7F71403-B Interface Board for Mercedes Benz A247 W177 A-class HU6 Instrument Cluster Used with Module 37
YANHUA ACDP MB HU6-R7F71403-B Interface Board Used with Module 37
Supported Module Types: A247 W177 A-class HU6 instrument module.
Package List:
1pc x YANHUA MB HU6-R7F71403-B Interface Board Used with Module 37
Shipping Method and Delivery Time:
EU, UK , US and Russia Warehouse Shipping: 3-5 working days. Fast Delivery & Tax Free.
China Warehouse Shipping:
DHL Shipping: 3-5 working days. Usually we declare a lower value on DHL invoice to help with customs clearance. Please remember to leave message if you have any special requirement.
Yanwen Express: 7-10 working days. No Tax for European Countries.
Standard Post: 7-15 working days. To South America and Africa countries it may take 20-25 working days. Customers can tick Express Shipping Service to ship by DHL.
For any question, please contact us at:
Tech Service
YANHUA MB HU6-R7F71403-B Interface Board is specially designed to work with Yanhua ACDP 1/ ACDP 2 and Module 37 for Mercedes-Benz A247 W177 A-class HU6 instrument mileage correction.
PART I
MB HU6-R7F71403-B Interface Board vs. Benz HU6- R7F71403 Interface Board
1.Similarities:
Both need to work with Yanhua Mini ACDP/ Mini ACDP-2 with Module 37.
Both are compatible with Yanhua MB HU6 YH-OBD Platform to reset mileage on bench, no need to install the original HU6 module on the car and operate via OBD on car.
2.Differences:
Yanhua Benz HU6- R7F71403 Interface Board comes with the Yanhua Module 37 package, and supports mileage correction for the MB HU6 instrument module (A167/A213/A247) with chip model R7F701403.
Supported vehicle models:
- Support for Mercedes-Benz W247 A/B/CLA/GLA/GLB after 2019
- Support for Mercedes-Benz W177 CLA/GLA after 2019
- Support for Mercedes-Benz 167 GLE/GLS after 2019
- Support for Mercedes-Benz W213 E/CLS after 2020
- Support for Mercedes-Benz H243 EQA and X243 EQB after 2021
Yanhua ACDP MB HU6-R7F71403-B Interface Board supports mileage correction for Mercedes-Benz A247 W177 A-class HU6 instrument module.
PART II
How to use Yanhua MB HU6-R7F71403-B Interface Board?
1.Mini ACDP menu path
Benz>> HU6 ODO Module (IC77) mileage correction>> R7F71403 (A167/A213/A247)>> BENZ-HU6-B interface board (W177 A class)>> OBD+ ICP reset mileage>> Original module (YH platform)
Step 1: OBD Backup Data
Step 2: ICP Modify Data
Step 3: OBD Modify Mileage
- Connection Method
- Unlock the interface board: Push the latch to the unlock position and identify the correct installation area using the positioning pins.
- Locate positioning holes: Find the correct D1 - D5 positioning holes on the instrument panel.
- Verify test point pin definition: Ensure proper alignment.
- Align and secure the interface board: Position it with the probe holes on the odometer board.
- Lock the interface board: Press down firmly, then push the PCB lock buckle to secure the installation.
YANHUA Mini ACDP MB HU6 R7F71403-B Interface Board is available now.
