Product Description
Autel MaxiSys MS909CV provides full functionality and online repair information for you when you are diagnosing light, medium and heavy-duty vehicles, identifying faults and researching repair issues.
Autel MaxiSys MS909CV
Autel MaxiSys MS909CV provides full functionality and online repair information for you when you are diagnosing light, medium and heavy-duty vehicles, identifying faults and researching repair issues.
It features a powerful octa-core processor and 9.7-inch TFT-LCD capacitive touchscreen for swift diagnoses and optimum viewing. As an intelligent diagnostic and information system, MaxiSys MS909CV not only displays the relevant repair fixes and cases gathered from experienced industry experts, but also provides step-by-step guidance to ensure the repair is done correctly and efficiently.
MaxiSys MS909CV also performs extensive vehicle diagnoses including the ability to read/erase codes, view and graph live data and perform active tests.
Autel MaxiSys MS909CV Product Features:
Intelligent Diagnoses
• Enhanced AutoSCAN / VINScan for easy vehicle identification
• DTC analysis / repair guided assist
• Pre/Post scan reports
• Module topology on selected vehicles (coming soon)
ADAS Calibration
• Class 6-8 dynamic calibration
• Class 3-5 complete ADAS coverage
• Class 6-8 static calibration (coming soon)
Battery Analysis
• Heavy duty battery test & health report
• Includes the BT506 and the BTAK
The MaxiBAS B200 battery
Compatible with more than 80 models of light, medium and heavy-duty vehicles.
ADAS(Advanced Driver Assistance System) calibration software for class 3 to 5 vehicles and class 6 to 8 vehicles
Includes a one-year limited warranty and a year of free software updates.
Autel MaxiSys MS909CV Hardware Specifications and Features:
Upgraded octa-core processor and 128GB storage and android 7.0 operating system with 9.7” touchscreen and the whole-new MaxiFlash VCI to deliver smooth operation.
Intelligent diagnoses with module topology on select vehicles and enhanced AutoSCAN / VINScan and DTC analysis / repair guided assist.
ADAS Calibration with new class 6-8 dynamic calibration, supporting class 3-5 complete ADAS coverage. The class 6-8 static calibration (coming soon)
Support heavy duty battery test & health report
Product Specifications:
Operating System |
Android 7.0 |
Processor |
Samsung Exynos 8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53) |
Memory |
4GB RAM & 128GB On-board Memory |
Display |
9.7-inch TFT-LCD with 1536 x 2048 resolution & capacitive touch screen |
Connectivity |
WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO) |
BT v.2.1 + EDR |
GPS |
USB 2.0 (TWO USB HOST Type A, ONE USB mini device) |
HDMI 2.0 |
SD Card (Support up to 256GB) |
Camera |
Rear: 16 Megapixel, Autofocus with Flashlight |
Front: 5.0 Megapixel |
Sensors |
Gravity Accelerometer, Ambient Light Sensor (ALS) |
Audio Input/Output |
Microphone |
Dual Speakers |
3-Band 3.5 mm stereo/standard headset jac |
Power and Battery |
15000mAH 3.8V lithium-polymer battery |
Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C |
Input Voltage |
12V/3A Adapter |
Operating Temperature |
0 to 50°C (32 to 122°F) |
Storage Temperature |
-20 to 60°C (-4 to 140°F) |
Dimensions(W x H x D) |
304.4mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67") |
Weight |
1.66kg (3.66 lb.) |
Protocols |
DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11898-2, ISO-11898-3, SAE-J2819 (TP20), TP16, ISO-9141, ISO-14230, SAE-J2610 (Chrysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS), Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2) |

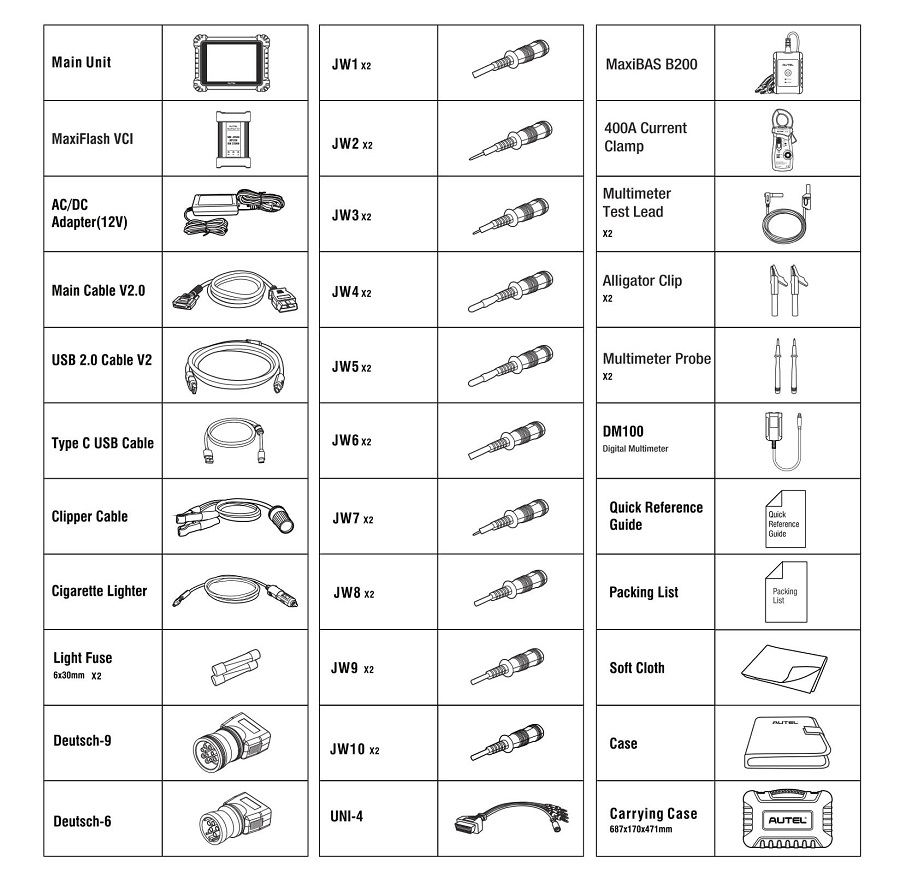

Autel MaxiSys MS909CV Package Includes:
