YANHUA Mini ACDP Module 28 for ZF-9HP Gearbox Clone, Support Jaguar, Land Rover, Chrysler, Dodge, Fiat, Honda, Jeep and other models of the ZF-9HP gearbox BOOT mode clone.
YANHUA Mini ACDP Module 28 for ZF-9HP Gearbox Clone
Support Jaguar, Land Rover, Chrysler, Dodge, Fiat, Honda, Jeep and other models of the ZF-9HP gearbox BOOT mode clone.
1. The interface board can be inserted blindly to align with the boot test point, no need magnifying glass for calibration or complex probe workbench operation.
2. BOOT test point with pin detection function, data read and write safe and reliable.
3. The special interface board replaces the cable, which is simple, efficient, safe and reliable.

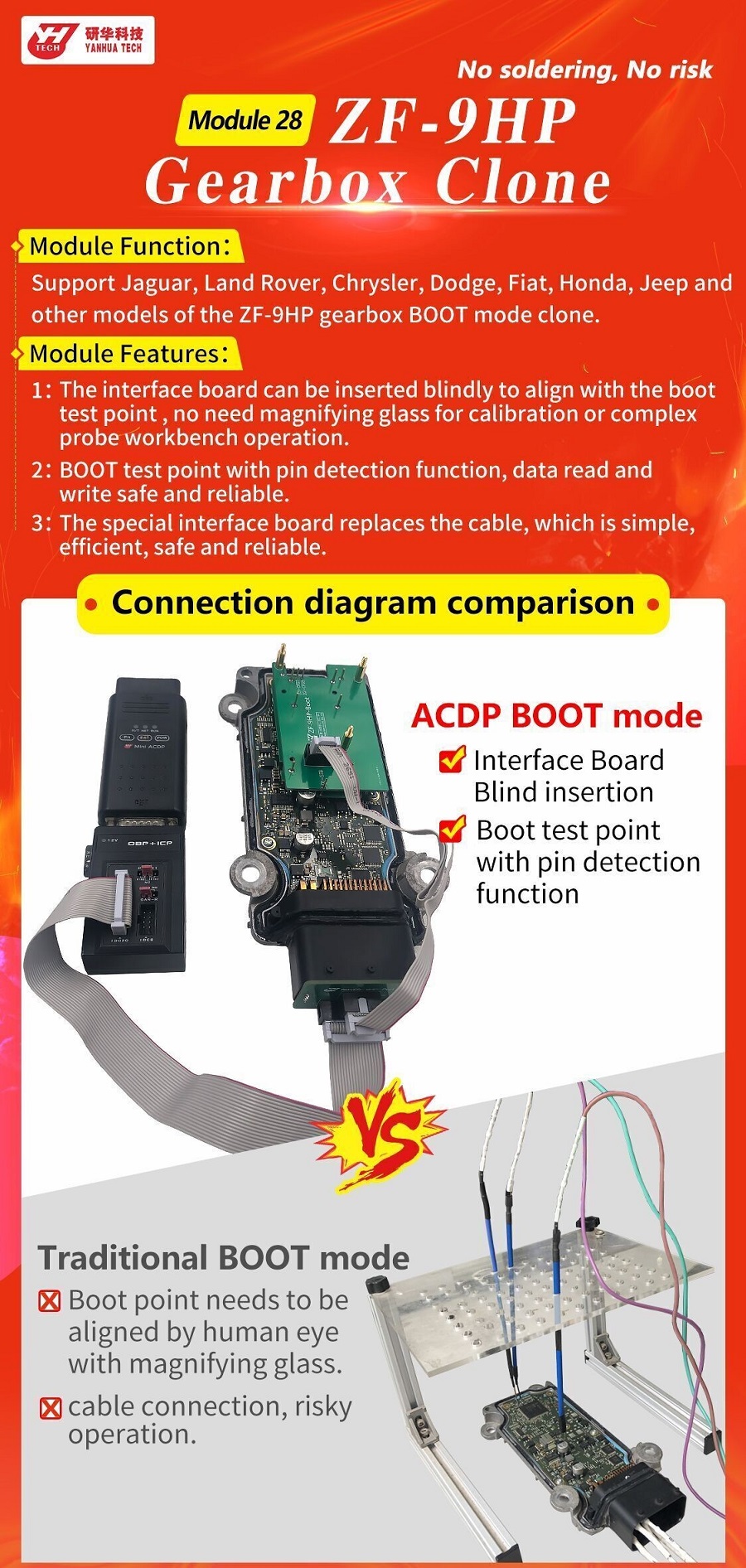

ACDP BOOT mode:
1. Interface Board Blind insertion
2. Boot test point with pin detection function
Shipping Method and Delivery Time:
EU, UK , US and Russia Warehouse Shipping: 3-5 working days. Fast Delivery & Tax Free.
China Warehouse Shipping:
DHL Shipping: 3-5 working days. Usually we declare a lower value on DHL invoice to help with customs clearance. Please remember to leave message if you have any special requirement.
Yanwen Express: 7-10 working days. No Tax for European Countries.
Standard Post: 7-15 working days. To South America and Africa countries it may take 20-25 working days. Customers can tick Express Shipping Service to ship by DHL.
For any question, please contact us at:
Yanhua module 28 gearbox clone video: ZF-9HP
Yanhua Mini ACDP + Module 28 is able to clone ZF-9HP gearbox BOOT mode, support Jaguar, Land Rover, Chrysler, Dodge, Fiat, Honda, Jeep, etc. Follow the tutorial to learn the procedure.
*Users can check connection diagram in "Help".
ZF-9HP-Port interface board
ZF-9HP-BOOT interface board
ZF-9HP gearbox computer
- Remove the 3 screws of the interface board, install the copper pillars. Put the CPU positioning frame on the CPU.
- Install ZF-9HP BOOT interface board. Lock it with copper pillars. Install ZF-9HP port interface board. Connect 2 interface boards with 8PIN cable.
- Connect OBP+ICP adapter with 20PIN cable.
- Short the CAN resistor on the OBP+ICP adapter to the "CAN-R-JOIN" side. Connect to ACDP host.
Step1. Backup Data
Mini ACDP>> Jaguar/Land Rover >> Gearbox clone >> ZF_9HP(BOOT) >> Identify >> Continue
Confirm system info.
BOOT pin status detection passed.
Continue >> Continue >> OK
Identify system info finished.
Full backup data >> Continue >> Continue >> Continue
Save data file.
Step2. Write Data
Connect another ZF-9HP gearbox computer.
Full write data >> Continue >> Continue >> Continue >> Load data file
Ready to write chip data, please don't cut the power nor pull out the device during the programming!
Writing chip data finished.
